Chain link fence is a woven wire fence made by diamond opening mesh, hence, it is also called Diamond Mesh Fence. A popular netting fence for residential, industrial and commercial site border line security fencing applications.
Security chain link fencing system has usually security gate and barbed wire coils at top of the mesh panels.
OUR CAPABILTIES
We supply galvanised chain link fencing galvanized before weaving (GBW) and galvanized after weaving (GAW). Available in various wire diameters, edge type and openings. Further corrosion resistance finishes for galv. steel chain link wire we supply include pvc or vinyl coating.
Fence wire materials:
Galvanized (Electro galvanized, hot dipped galvanised, galv. + pvc coated) wire, aluminised steel wire, and other alloy materials also available.
We export diamond opening chain link fencing to many countries: Kuwait, Qatar, India, Bharain, Thailand, Zambia, Germany, UK, etc.
Chain link mesh is used as:
As fencing for sports field, playground, river banks, construction sites, temporary control.
As fences for gardens, highway, railway, airport, swimming pool, yards, residence, etc.
As security fences to protect power plant, substations, bridge, reservoir and other civil engineering works.
As cage fence for keeping and breeding of pets / animals.
As hurricane fencing.
Galvanized chain link fence to QATAR market
Chain-link mesh fence, low carbon wire, hot dip galvanized with galvanized steel supports and connections
Fence size: 3500mm x 2000mm
Wire diameter: 3.0mm
Hole size: 260x85mm
Vertical bars: 38mm, horizontal bars:25mm
Thickness of tube: 2.0mm
Brace poles: 38mm
Hard plastic sand filled base
Suitable push over resistance for the intended applications.
Surface laid, modular size and quick to erect and dismantle
Simple fixing
Gate - Wire mesh gate 2.960x2.5 mtrs height
Galv. Iron chain link fence, diamond hole, exported to Bahrain, specifications:
Wire dia: 3.2mm(after PVC)
Mesh: 50mmX50mm
Size: 2.7mm
Color: green
Weight:（ before pvc ）2.2mm1.4KG

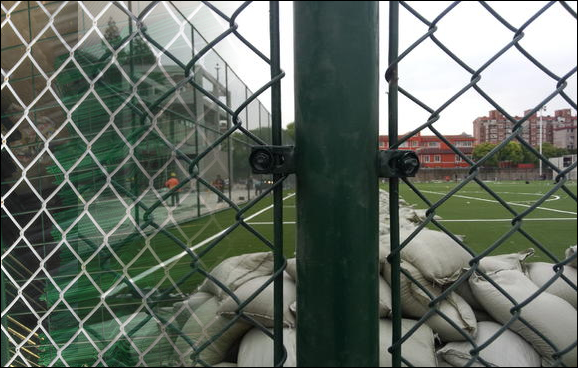

Suitable for sports perimeter fencing: sports netting for tennis court, football field, including mesh fabric, frames, posts and accessories. Optional specification: mesh 50x50 diamond, wire diameter 3.8mm,
Panel size: 3000mm X 4000mm, vertical Post: diameter pipe 60/2.75mm, horizontal Post: diameter welded steel pipe 60/2.75mm
Galvanized and green coated chain link wire mesh, 2m height and 40m long each roll.
Specification as follows to SOMALIA:
Galvanized iron chain link fabric, gauge 9 (.148")
Wire mesh: 3mmx60mmx60mm
Roll size:2m height x 40m
In rolls
Fence accessories:
Galvanized post:
60mmx2600m(600mm buried into ground)
Tension Wire: 3mm
Binding wire
Color: All green
Typical Temp Gi fence to Qatar market:
Framed mesh fence
20mm x 20mm x 5mm gi wire mesh, hot dip galvanised
With gi pipe post ( galvanised), 2 inch diameter, round bar 10mm diameter, bolts galvanised, angle equal legs 50mmx50mmx5mm

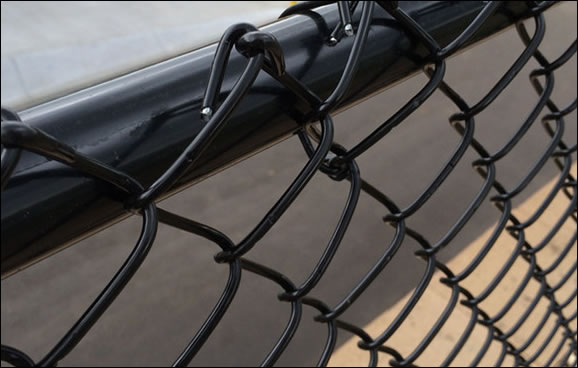

Black powder coated chain link fence + gates - suitable for pool safety
Chain link wire: Mesh galvanized steel black PVC coated, 60x60 diamond
Gate and end posts 40NB galvanized steel powder coated black
Posts 32NB galvanized steel powder coated black
2.4mt centers
Top rail 25NB galvanized steel powder coated black
Attached to posts with black powder coated down fittings
Double gates 25NB frame powder coated black 3.2mt opening size, black chain wire infill.
Gates: swing type, hinged to swing 180 degrees from closed to open, complete with frames, latches, stops, keepers, hinges, fabric, braces
Fabric for gates: PVC coating wire mesh(50×50), diameter 4mm.
PVC Coated G.I Chain Link 3mm x 40 mm Mesh, Canada Standard
Suitable for field fence and border fence for Canada, Zambia, South Africa market:
2.5 m high fence ofPVC coated G.I (galvanized iron) chain link
3mm wire, 40 mm mesh size

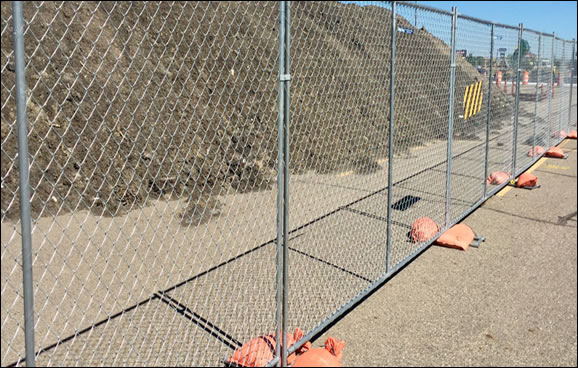

We supply modular chainlink fencing mesh and fittings for a quick fencing system. Serve as temporary or permanent fence system.
We supply chain link mesh of all sizes and finishes.
Diamond hole linked mesh provides strong, durable and flexible construction. The linear strength and springy rhombic texture make chain link fencing mesh ideal for sports, field and border protection.
Materials: Galv. steel, Aluminum coated steel, Galfan Galv. , stainless.

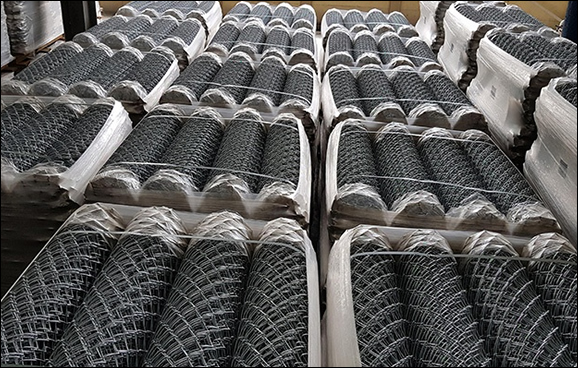

Aluminized Chain Link Fabric
Aluminized wire is hot dip alu coated steel wire, populary used in chain link fencing making.
In Rolls, 9 gauge aluminum coated mesh fence, woven with aluminized wire, featuring high tensile strength and extreme corrosion resistance
Chained Wire Mesh Galvanized
Galvanized chain link wire is very popular for fencing uses.
Typical size to SAUDI ARABIAN market:
Galvanized Chain Link Wire Specifications in MM
| Description | Opening ( mm ) | Wire diameter ( mm ) | Width of the roll ( m ) | Length of the roll ( m ) |
| Chain link fence mesh ( Galvanized ) | 60 mm | 2 mm | 2 m | 15 m |
| 70 mm | 2 mm | 2 m | 15 m | |
| 60 mm | 2.6 mm | 1.5 m | 15 m | |
| 70 mm | 2.6 mm | 1.5 m | 15 m | |
| 60 mm | 2.6 mm | 2 m | 15 m | |
| 70 mm | 2.6 mm | 2 m | 15 m |
PVC Coated Wire Mesh
Chain-link mesh rolls
SPECIFICATIONS:
PVC coated chain link wire mesh
Hole: 1.5 inch
Length: 10 meters
Width: 1.5 meters
Green colour
Inner Diameter: 1.6 mm
Outer diameter:2.4 mm
PVC coated chain link wire mesh:
Hole: 1.5 inch
Length: 10 meters
Width: 2.40 meters
Green colour
Inner Diameter: 1.6 mm
Outer diameter:2.4 mm
Chain Link Gates options: Walk Gate, Single Gate, Double Swing Gate, Sliding Gate, Foldable Gate, Cantilever Gates without roller, or with roller.
Made of galvanized chain link mesh panels or plastic coated wire, framed with tubes and fixed with rollers. Security gate can be automated. Latches, padlocks, stops, and keepers and other gates accessoreis are supplied.
The High Security Chain Link Fence System is composed of:
FENCE FABRIC
POSTS (Metal Posts for Chain Link Fence and post accessories)
BRACES AND RAILS
WIRES (Wire Ties, Barbed Wire, Tension Wire)
BARBED TAPE
GATES ( Gate Assembly, Gate Leaves, Gate Hardware and Accessories, padlocks, gate operator, electro locks )
Security Chain Link Fence System with Y Posts, Gates, Barbed Wire + Razor Wire, Specifications for Germany Market:
Chain Link Fence, Galvanized, 2.4 meter height
Barbed wire, total length of perimeter x 12
Post for Gate / change of direction and angle posts
Y frame Steel posts to accept double 300mm height of 6 plus 6 linear rows of barbed wire. [ arm length 500 mm ]
Razor Wire, top of razor wire will be approx 3.5mt height
Vehicle Gates 2 ,4 mts x 8 meter wide, with padlock mechanism
Pedestrian Gates 2,4 mts x 2 meter wide with padlock mechanism
High Security Fence Chain Link, PVC Coated Green Color, Topping with CBT-60 Razor Barbed Tape and Wire Barbed
Galv. + powder coated chain-link fencing suitable for ship and port, and substation security fencing works.
Size in inches to Thailand market:
Fence Chain Link , PVC Coated / 42" H x 50' L
Size of Mesh Inchs : 2"
Diameter of Core Wire : 0.148"
ASTM : F668
Color : Green
Fence Chain Link , PVC Coated / 84" H x 50' L
Size of Mesh Inchs : 2"
Diameter of Core Wire : 0.148"
ASTM : F668
Color : Green
Wire Tension , PVC Coated / 9 Gage x 900m/roll
ASTM: F668
Color : Green
Wire, Razer Bared Tape , CBT-60
Thickness : 0.6mm
Wire Dia.: 2.5mm
Barb Length : 60mm
Barb Width: 32mm
Barb Spacing : 100mm
Outside Dia.: 960mm
Standard Length per Coil: 14-15M
Supplied in Single Coil
Wire Barbed , PVC Coated / 14 Gage x 500m/roll
ASTM : 1664
Color: Green
Chainlink Galvanised Mesh Fence Barbed Wire Topped, UK Standard
Suitable for airport and other primary security fencing.
Typical size to UK market:
3.05m High x 50mm x 50mm x 3.0mm galvanised chainlink barbed top and bottom
2.15m High x 50mm x 50mm x 3.0mm galvanised chainlink barbed top and bottom
Fences conform to the following specification:
Fencing to be made to BS EN 10223-6 (steel wire mill certificates supplied along with certificate of conformity)
Galvanising to BS EN 10244-2 Grade AX3.: Galv zinc coating of 765g/msq (certificate of conformity supplied)
2.15 m high hot dip galvanized mesh fence, rhomboid mesh shaped in 50mm opening, wire diameter 3.0mm, hot dip zinc galvanized barbed wire coils topped
International Standard Followed in Chain Link Fence Products
INTERNATIONAL (ASTM) Standards:
ASTM A116 (2011) Standard Specification for Metallic-Coated, Steel Woven Wire Fence Fabric
ASTM A121 (2013) Standard Specification for Metallic-Coated Carbon Steel Barbed Wire
ASTM A153/A153M (2016) Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware
ASTM A240/A240M (2015b) Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications ASTM A392 (2011a) Standard Specification for Zinc-Coated Steel Chain-Link Fence Fabric
ASTM A478 (1997; R 2013) Standard Specification for Chromium-Nickel Stainless Steel Weaving and Knitting Wire
ASTM A491 (2011) Standard Specification for Aluminum-Coated Steel Chain-Link Fence Fabric
ASTM A666 (2015) Standard Specification for Annealed or Cold-Worked Austenitic Stainless Steel Sheet, Strip, Plate and Flat Bar
ASTM A702 (2013) Standard Specification for Steel Fence Posts and Assemblies, Hot Wrought
ASTM A780/A780M (2009; R 2015) Standard Practice for Repair of Damaged and Uncoated Areas of Hot-Dip Galvanized Coatings
ASTM A824 (2001; R 2012) Standard Specification for Metallic-Coated Steel Marcelled Tension Wire for Use With Chain Link Fence
ASTM F1043 (2016) Strength and Protective Coatings on Metal Industrial Chain-Link Fence Framework
ASTM F1083 (2016) Standard Specification for Pipe, Steel, Hot-Dipped Zinc Coated (Galvanized) Welded, for Fence Structures
ASTM F1184 (2016) Industrial and Commercial Horizontal Slide Gates
ASTM F567 (2014a) Standard Practice for Installation of Chain Link Fence
ASTM F626 (2014) Standard Specification for Fence Fittings
ASTM F668 (2011) Poly(Vinyl Chloride) (PVC) and other Organic Polymer-Coated Steel Chain-Link Fence Fabric
ASTM F883 (2013) Padlocks ASTM F900 (2011) Industrial and Commercial Swing Gates
Learn more to Properly Install A High Security Chain Link Fence System.
