Passive Fireproofing (PFP) system is used to prevent or slow the spread of fire or to maintain the structural integrity of building, vessel, or offshore platform during a fire.
Wire Mesh used in PFP system
Wire mesh is often incorporated to enhance the mechanical strength and bond of the fireproofing material to the substrate in Fire Protection System. Galvanized steel wire mesh provides additional tensile strength, helping the fireproofing material resist cracking, under fire conditions or during normal operations.
Specifications, features, materials of steel mesh for Fire Protection Insulation system
Steel Mesh Materials:
Galvanized Steel Mesh in PFP application is commonly Black PVC coated finish.
PVC-coated galvanized steel mesh provides excellent corrosion resistance and can be used in moisture environments.
Black color of the PVC coating is common, other colors are also available.
Stainless Steel Mesh available upon request for more corrosive environments, where a longer lifespan is desired.
Mesh Size:
Openings in wire mesh typically in 6mm to 25mm. Specific size used depends on the thickness of the fireproofing material and the desired mechanical properties.
Wire Diameter:
The diameter of the wire used in galvanized mesh can range from about 0.8mm to 3mm.
Weave Type:
Common weave is twist / weave.
OUR CAPABILITIES
We supply Galvanized Steel Mesh with Black Pvc Coating for passive fireproofing (PFP) system used in petrochemical facilities, refineries, power plants and tunnels construction.
Galvanised Steel Mesh Roll for Fire Protection System
Physical properties:
Material- Low carbon Steel Wire- galvanized after weaving and before coating
Wire Diameter- 1.0mm uncoated/ 1.5mm coated ( +/- 0.1mm)
Coating- Black PVC
Mesh Size- 2" x 2" Hexagonal with single reinforcing wire
Roll size- 40" ( W) x 100' (L)
Roll Weight- Approx- 0.77lbs/SF

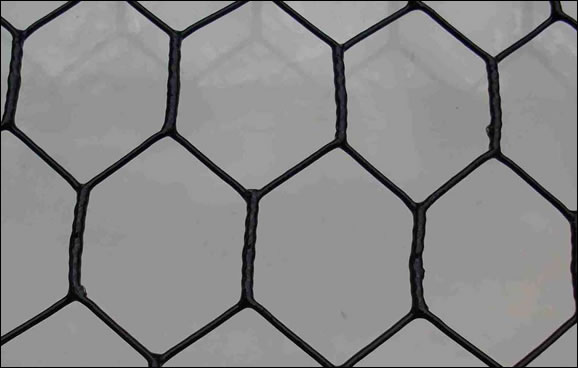

Passive Fire Protection System Reinforcing Mesh
Hexagonal chicken wire mesh with a reverse twist, used with wire ties or pins to secure materials in place in passive fire protection (PFP) system.
Common size for UAE and Middle east market PFP system construction:
Mesh: 51 mm Hexagonal hole
Wire: 1.0 mm uncoated, 1.5 mm coated (+/- 0.1 mm)
Weaving: Reverse Twist
Material: Low carbon steel
/ ms
Process:
Galvanized after weaving
Corrosion protection treatment: Zinc coated plus pvc coated.
Fire Protection Steel Mesh Options:
Plastic coated galvanized steel mesh (50 x 50 x 1.5)mm
Galvanized mesh 100x100x2mm
Galvanized mesh 50 to 75 x 2mm
